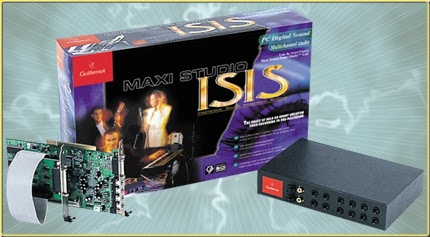

Maxi Studio ISIS

Maxi Studio ISIS - is the first integrated home studio featuring PCI bus sound board, full duplex, 8 inputs and 4 outputs, offering the user near to professional possibilities and a superior quality at a fraction of a cost comparing to professional equipment!
Maxi Studio ISIS - was developped especially to meet the nedd of musicians but is also an ideal companion to developers of multimedia products, radio station engineers, Web designers, DJs and all other specialists who work with music./TD>

CHIPS USED

Main Board External Panel

PCI accelerator ESS Maestro 2E-M.

RISC DSP Dream 9707.

DAC/ADC AC97.

20 Bit DAC/ADC Burr-Brown PCM 3001.

20 Bit DAC Burr-Brown PCM 1718.

FEATURES:

GM/GS sampler with 64-notes polyphony, 4Mb RAM (expandable to 36Mb, SIMM 72pin), 16 MIDI channels (up to 32), multi layer mode, resonance filter upto 24 db.
Standard 4MB GM/GS bank + MT32 certified by Roland Corp. : 128 instruments + 97 variations and 61 drum kits in GM bank, in MT32 bank - 128 instruments, 7 special sets with 82 instruments, set of sound effects with 46 instruments and CM64/32 with 67 instruments.
Digital effects with the possibility to the settings of each effect for each MIDI channel (8 types of reverberation and 8 types of chorus).
Real time digital sound processing - use of Reverb, Chorus, Delay, Flanger effects on MIDand digital channels, Echo and Reverb on inputs signals.
Interactive surround sound on 2 or 4 speakers.
Real time 4-band paragraphic equalizer on all sound sources.

INPUTS AND OUTPUTS:

Main Board External Panel
Microphone pre-amplified input.

Stereo line input.

Stereo line output.

Line output for surround speakers.

8 mono line inputs.

4 mono line outputs.

Optical digital line input and output.

Coaxial digital line input and output.

MIDI through lin input and output.

DIGITAL SOUND:

8 mono 20-bit inputs.
4 mono 20-bit outputs.
Simultaneous recording of 8 channels and playback of 4 channels.
Monitoring function of any of 8 input channels on any of the 4 available outputs.
Sampling rate ranging from 11 Khz up to 48 Khz, 8/16 bit, mono/stereo.
Optical and coaxial S/PDIF digital inputs and outputs.

Hardware accelerator for DirectSound/DirectSound 3D (up to 8 3D buffers on 2 speakersand up to 32 3D buffers on 4 speakers).
Aureal A3D 1.0 on 2 speakers.
Hardware digital effects in real time applicable for all sound sources.

SOFTWARE:

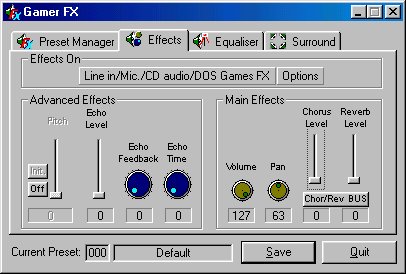

GAMER FX - Is a system that manages interactive 2D and 3D Surround sound, effects and equalizer. This package gives a possiblity to creat unique settings for each game individually and multimedia applications. This software contains presets for 50 most popular games.

Gamer FX Software

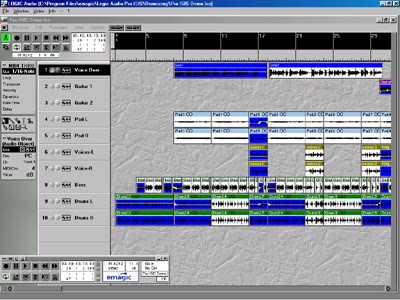

LOGIC AUDIO PRO ISIS - Professional digital multichannel Audio/MIDI recording system, that anables all functions of this sound board.

Logic Audio Pro ISIS Software

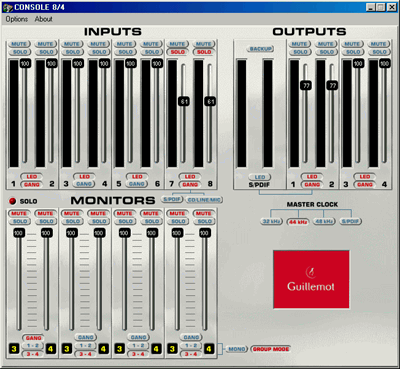

CONSOLE 8/4 - Software package that permits to control all inputs and outputs, monitoring and synchronisation.

Console 8/4 Software

COOL EDIT PRO SE - Professional 10 channel editor and mixer of digital sound.

ACID DJ - Very simple to operate software package to work with music phrases in modern styles (techno, industrial, acid, etc.).

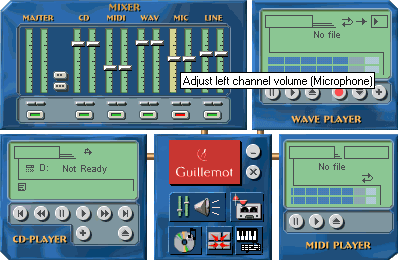

MEDIA STATION - Software package to manage all the resources of the sound card (MIDI, digital audio, СD, mixer). You have also an option to record and playback your recordings.

Media Station Software

INSTRUMENT MANAGER - With this package you can create instruments from Wav files.

SOUNDBANK MANAGER - Creation and compilation of sound banks.

GROOVESTYLE - 200 MB of sound banks.

COMPATIBLE WITH THESE STANDARDS:

General Midi.

General Standard.

Roland MPU-401 mode UART.

Aureal A3D 1.0 on 2 speakers.

DLS (DownLoadable Sounds).

DirectSound and DirectSound 3D hardware accelerator.

Windows 95/98 Plug and Play.

MS DOS version 5.0 and higher.

Sound Blaster and Sound Blaster Pro and Adlib.

Enhanced full duplex.

CubaseVST.

Logic Audio.

Cakewalk Audio Pro.

100% compatible with all games.

Compatible with any PC system (lntel, AMD and Cyrix processors).

MINIMUM REQUIRED CONFIGURATION:

Pentium 133MHz or higher.

Free PCI 2.1 slot.

16 MB RAM (32 MB recommended).

Windows® 95, 98 or DOS 5.0 or higher (for games).

CD-Rom drive. (CD-R to use the CD-burning software).

3,5 MB per second data transfer speed for multi-track-recording.

Pentium 166MHz or higher with 32 MB RAM required for LOGIC AUDIO PRO ISIS.
